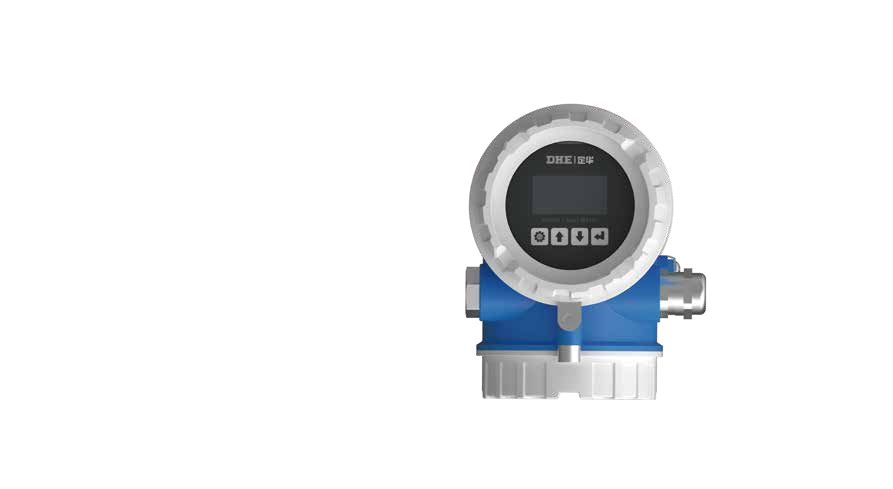

G80 FMCW Radar Level Meter

With the design of a beam angle of 3° and a very small antenna, the best measurement results can be obtained in complex conditions with intermal components, stirring devices and compact vessels. DHE G80 FMCW radar level meter is now widely
used in pharmaceutical, chemical, food, energy and water conservancy industries for accurate level measure-ment of various media.

Measurement Principle
DHE G80 FMCW Radar Level Meter is a "top view" measurement system based on the principle of frequency modulation continuous wave (FMCW). The antenna emits the electromagnetic wave with continuously changing frequency to the medium, and then the electromagnetic waves are reflected after reaching the surface of the medium. Finally, the reflected echo is received by the antenna again.

FMCW principle:
emitting and reflecting the continuous wave

R: Highest point of level measurement

H: Total distance of level measurement

D: Distance from the highest point to the media surface

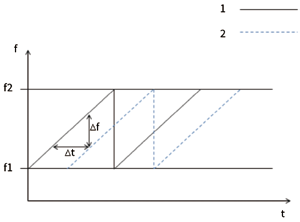

FMCW principle:

1 Transmit signal 2 Receive signal Therefore, there is a frequency difference between the transmitted signal and the received signal at any point in time:Af=k* O T, in which△t is the running time of electromagnetic wave and K is the slope of frequency modulation. △t is related to distanceD:D=△t*C/ 2, and C is the speed of light. So D can be calculated based on the measured frequency difference O F. And then determine the actual level height in the tank based on D.

Eight Characteristics

1、Relability：
"EL L signal analysis technology" can reduce the impact of various false echoes to ensure high reliability of products.
2、Safety：
It is designed and produced based on lEC61 508 standard to ensure high s afety of products.

3、High precision：

It adopts FMCW frequency modulation technology. and the product accuracy can reach土1mm.

4、Double cavityenclo sure：
It fully realizes the isolation of circuit cavity to ensure the safety of using electricity on-site.

5、Small be am angle：

It adopts the be am angle of 3"technology. which greatly improves the anti- inteference abiliy.

6、Small blind zone：
It adopts small blind zone technology which can reduce the blind zone to a minimum of 2cm.

7、Large bandwidth：

It adopts 5GHz bandwidth technology to ensure product resolution and high signal-to-noise ratio.

8、Millimeter wavelength：
It adopts millimeter wavelength technology, which has the ability to penetr ate smoke, dust and fog, and is suitable for complex working conditions.

Technical Advantages

1、Remote Debugging: G80 can be remotely debugged through the remote communication module.

2、Super Large Range: the maximum measuring range of G80 is 120m.

3、High Temperature Resistance: G80 can measure the medium of which the temperature is less than or equal to 200 °C.

4、Multiple output modes: 4~ 20mA, HART, Modbus.

5、Super small antenna: G80 can be inst alled on the screw thread of which the size is greater than or equal to G1/2.


Application

DHE G80 FMCW radar level meter, is suitable for level measurement of liquid medium and solid medium. Applications include: aqueous media, hydrocarbons, liquid gases, solid particles and other media with dielectric constant greater than 1.4.

The product has the characteristics of non-contact measurement, continuous output and multiple antenna types, which meet the installation and use of various working condi-tions. For example: highly corrosive nitric acid storage tank, liquid chlorine storage tank with dielectric.

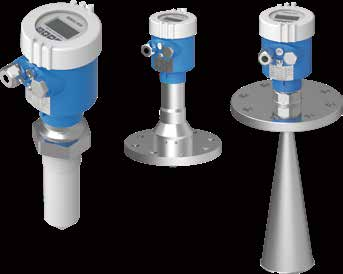

DHE-RD-5100 Non-contact Pulse Radar Level Meter

Application

It is suitable for continuous non-contact level measurement of conventional liquid and solid media.

Range:0~ 30m

Accuracy;土3mm

Process temperature:40-130*C

Antenna forms; horn antenna

Output signal:4-20mA+HART;Modbus

Explosion-proof and protection grades:Ex ia

IIC T6 Ga/IP67

Frequency: K band (about 26 GH2)

Beam angle: 8-23*
